OGC STA API Traveltime Extension

  • Title: Temporal Data Support
  • Identifier: traveltime
  • Field Name Prefix: Traveltime
  • Scope:
  • Extension Maturity Classification: Pilot
  • Owner: @massimiliano.cannata

This document explains the "Temporal Queries Support" Extension to the SensorThings API (STA) specification.

Overview

This extension assists istSTA users in accessing historical time travel data. It enables users to retrieve information from a web service as it appeared at a specific moment in time, using a new query parameter called as_of.

Additionally, it introduces a new entity called Commit, which enables data lineage, allowing users to trace data changes. From a scientific perspective, this extension enables FAIR data management by allowing datasets to be permanently cited. This is achieved by using a combination of the service address (in red), the request that returns the dataset (in green), and the dataset's status at a specific time instant (in orange) as a Persistent Identifier for reference.

Example:
https://<base_url>/<version>/<entity>?$expand=<entity>&\$as_of=<date_time>

Definition

The Traveltime extension adds the following optional query parameters to any STA request:

Parameter Type Description
as_of ISO 8601 date-time a date-time parameter to specify the exact moment for which the data is requested
from_to ISO 8601 period a period parameter to specify the time interval for which the data is requested

The Traveltime extension introduces a new entity, Commit, with the following properties:

Properties Type Multiplicity and use Description
author string(128) One (mandatory) Authority, Username or User Profile Link
encodingType string One (optional) The encoding type of the message (default is text).
message string(256) One (mandatory) Commit message detailing the scope, motivation, and method of the transaction.
date ISO 8601 date-time One (mandatory) A date-time that specifies the exact moment when the commit was executed.

Commits are related to SensorThings API entities with a one-to-zero-or-one (1:0..1) relationship.

Additionally, the User entity is extended with a navigation link to the Commit entity, allowing users to access the commits associated with their actions.

Properties Type Multiplicity and use Description
username string(128) One (mandatory) The username of the user.
contact json One (optional) The json that describe the contact information (suggested a Json version of the object from OGC and ISO 19128 XML schemas).
uri URI One (mandatory) The URI that identifies the user (for researcher is ORCID).
role string(128) One (mandatory) The role of the user.
{
    "ContactPerson": "Jeff Smith",
    "ContactOrganization": "NASA",
    "ContactPosition": "Computer Scientist",
    "ContactAddress": {
        "AddressType": "postal",
        "Address": "NASA Goddard Space Flight Center",
        "City": "Greenbelt",
        "StateOrProvince": "MD",
        "PostCode": "20771",
        "Country": "USA"
    },
    "ContactVoiceTelephone": "+1 301 555-1212",
    "ContactElectronicMailAddress": "user@host.com"
}

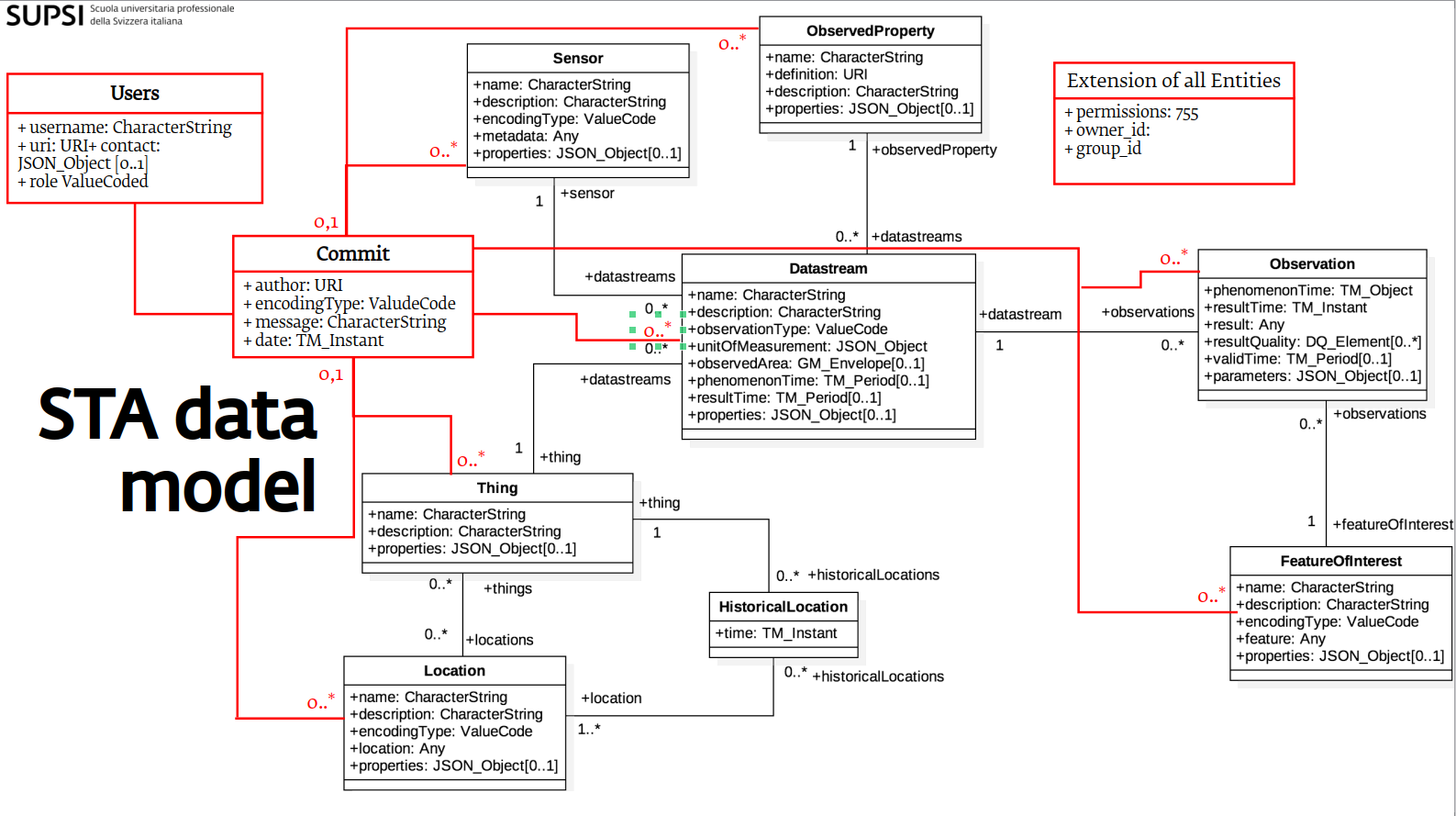

Traveltime extension schema

traveltime schema

Requirements

Req 1: request-data/as_of-parameter

An OGC SensorThings API service with the Traveltime extension SHALL evaluate the $as_of query parameter to return data as it was at the specified date-time.

Req 2: response-data/as_of-response

An OGC SensorThings API service with the Traveltime extension SHALL include in the response a key with the value of the as_of parameter, which specifies the ISO 8601 date-time that identifies the request time instant.

Req 3: request-data/as_of-no-future-dates

An OGC SensorThings API service with the Traveltime extension SHALL verify that, if present, the $as_of query parameter is not set to a future date-time.

Req 4: request-data/as_of-default-is-now

An OGC SensorThings API service with the Traveltime extension SHALL verify that if the $as_of query parameter is not present, it returns the currently valid data, which is equivalent to setting the as_of value to now().

Requirements for transactions

Req 5: request-data/commit-element-validity

An OGC SensorThings API service with the Traveltime extension SHALL include the Commit element in the response, with the selfLink provided.

Req 6: create/commit-on-commits

An OGC SensorThings API service with the Traveltime extension SHALL not accept create requests that include Commit elements.

Req 7: update-delete/commit

An OGC SensorThings API service with the Traveltime extension SHALL not accept updates or deletions of Commit elements.

Req 8: update-delete/commit-element

An OGC SensorThings API service with the Traveltime extension SHALL evaluate the Commit element included in the edited element and expand its properties accordingly.

Req 9: update-delete/commit-element-properties

An OGC SensorThings API service with the Traveltime extension SHALL ensure that the Commit element included in the edited element has the author and message properties, and that the date property is not included. The date property is read-only and fully managed by the system.

Req 10: update-delete/commit-element-versioning

An OGC SensorThings API service with the Traveltime extension SHALL persistently keep versioning of the edited elements and register Commit elements that caused any variations over time.

Requirements for versioning

Req 11: request-data/element-history-validity

An OGC SensorThings API service with the Traveltime extension SHALL evaluate the $from_to query option and verify that it can be used on a single entity (without expansion). If the query option is used incorrectly or on multiple entities, the service SHALL return an error.

Req 12: request-data/element-history-elements

An OGC SensorThings API service with the Traveltime extension SHALL evaluate the $from_to query option and return all registered variations whose validity intersects with the specified period and meet any additional filters.

Examples

Retrieve Things at a specific instant.

http://localhost/istsos4/v1.1/Things(1)?$as_of=2024-09-02T15:22:05.04

{
  "@iot.id":1,
  "@iot.selfLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)?$as_of=2024-09-02T15:22:05.04",
  "Locations@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/Locations?$as_of=2024-09-02T15:22:05.04",
  "HistoricalLocations@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/HistoricalLocations?$as_of=2024-09-02T15:22:05.04",
  "Datastreams@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/Datastreams?$as_of=2024-09-02T15:22:05.04",
  "Commit@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/Commit(1)",
  "name":"thing name 1 change",
  "description":"thing 1",
  "properties":{"reference":"first"}
}
Retrieve the associated Commit.

http://localhost/istsos4/v1.1/Things(1)/Commit(1)

{
  "@iot.id":1,
  "@iot.selfLink":"http://localhost:8018/istsos-miu/v1.1/Commits(1)",
  "Location@iot.navigationLink":null,
  "Thing@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Commits(1)/Thing",
  "HistoricalLocation@iot.navigationLink":null,
  "ObservedProperty@iot.navigationLink":null,
  "Sensor@iot.navigationLink":null,
  "Datastream@iot.navigationLink":null,
  "FeatureOfInterest@iot.navigationLink":null,
  "Observations@iot.navigationLink":null,
  "author":"Thing user 1",
  "encodingType":null,
  "message":"Thing commit 1",
  "date":"2024-09-02T15:22:03.044308+00:00"
}
Retrieve Things at a specific instant with their associated Commit elements expanded.

http://localhost/istsos4/v1.1/Things(1)?$as_of=2024-09-02T15:22:05.04&$expand=Commit

{
  "@iot.id":1,
  "@iot.selfLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)?$as_of=2024-09-02T15:22:05.04",
  "Locations@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/Locations?$as_of=2024-09-02T15:22:05.04",
  "HistoricalLocations@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/HistoricalLocations?$as_of=2024-09-02T15:22:05.04",
  "Datastreams@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/Datastreams?$as_of=2024-09-02T15:22:05.04",
  "Commit@iot.navigationLink":"http://localhost:8018/istsos-miu/v1.1/Things(1)/Commit(1)",
  "name":"thing name 1 change",
  "description":"thing 1",
  "properties":{"reference":"first"},
  "system_time_validity":"2024-09-02 15:22:03.044308+00/infinity",
  "Commit":
  {
    "date":"2024-09-02T15:22:03.044308+00:00",
    "author":"Thing user 1",
    "@iot.id":1,
    "message":"Thing commit 1",
    "encodingType":null,
    "@iot.selfLink":"http://localhost:8018/istsos-miu/v1.1/Commits(1)"
  }
}
